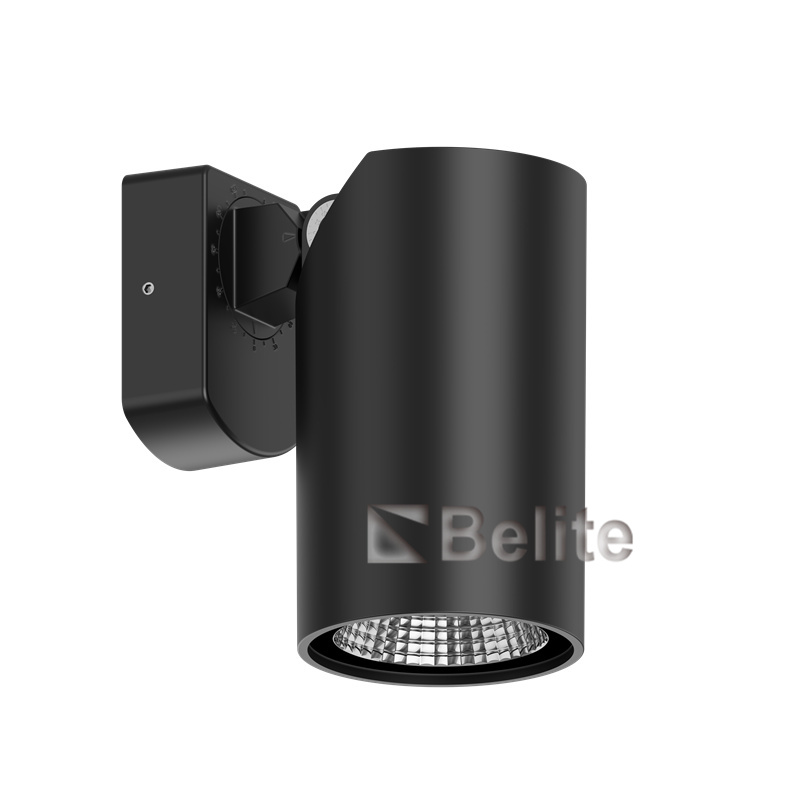

BELITE led wall mounted down light surface mounted waterproof wall light IP65 15W 22W AC/DC

Power:15W~45W

LED:CREE/BRIDGELUX/CITILED COB

CRI:  80 / 90

SDCM: 3 / 5

CCT: 2700K / 3000K / 4000K / 6000K/RGB 3in1/RGBW 4in1

Control: Remote / On-Off

Input Voltage:DC24V/AC230V

Dimming: DALI / DMX512 / 0-10V / 1-10V / Triac

Beam Angle: 10°/15°/23°/38° /60°/15*30°/30*60°

Material: Die-casting powder coated aluminum

Installation: Base mounting/Spike/Pole/Tree ring

Waterproof: IP66

Certification: CE EMC LVD, ROHS, IP66 etc.

Warranty: 3-5 Years

Download
Material Specifications
Model No.:PowerLED QTYLED BrandLED ColorLumensBeam AngleInput Volt.
BL-SMWL860115

15W/22W

1PCS

CREE/BRIDGELUX

/CITILED

 COB

2700-6000K900lm-1320lm

10°/15°/23°/38° /60°

/15*30°/30*60°

(Reflector Cup)

AC220-240V
BL-SMW860108 8W/15W480lm-900lmAC110-130V
BL-SMW86011010W-24W600lm-2000lmDC24V
BL-SMW860115A

15W/22W

900lm-1320lm

10°/15°/38°

/10*60°/30*60°

(Lens)

AC220-240V
BL-SMW860108A 8W/15W480lm-900lmAC110-130V
BL-SMW860110A10W-24W600lm-2000lmDC24V


Housing: 12#Die-casting powder coated aluminum. T=60-80um.Adhesion of ISO class 1/ASTM class48.

LED Driver:Constant voltage input.Constant current output.

Gasket:Tooling shaped double silicone seal.

Dimmable: Triac/Dali/1-10V/PWM/DMX512.

Power Cable:H05RN-F 2×1.0mm2 L=0.5m(low voltage).H05RN-F 3×1.0mm²  L=0.5m(high voltage)

                     H05RN-F 2×1.0+3×0.5mm²  L=0.5m(RGBW 4in1 DMX512)

Working Temperature:-20 to 40°C.

Parameter Data

BELITE led wall mounted down light surface mounted waterproof wall light IP65 15W 22W AC/DC
