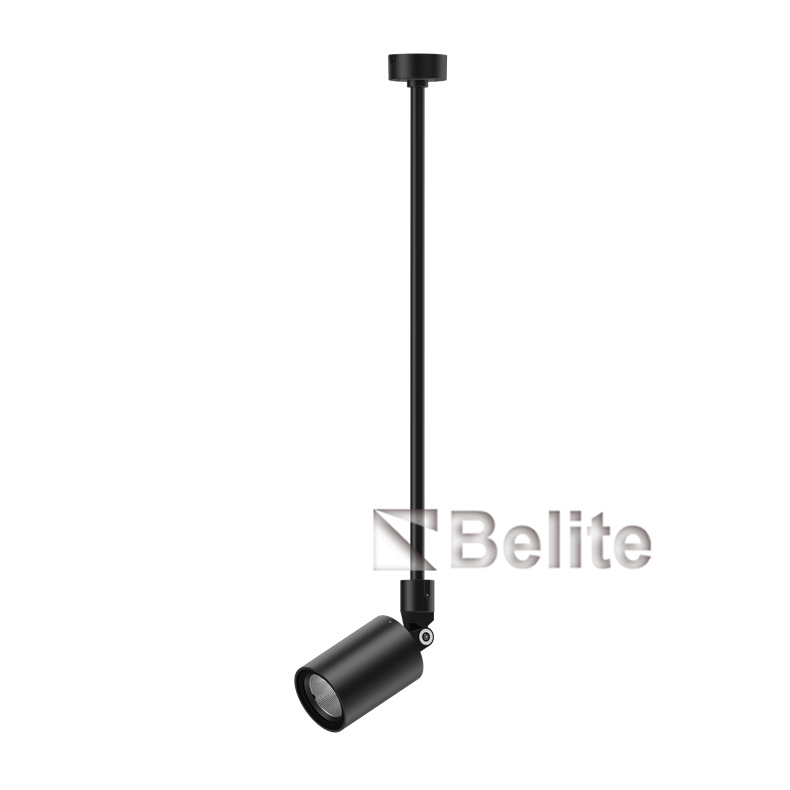

IP65 Outdoor 10W 15W Suspend Surface Mounted Wall Light LED Dimmable adjustable pendant hanging lighting

Power:8W~36W

LED:CREE/BRIDGELUX/CITILED COB

CRI:  80 / 90

SDCM: 3 / 5

CCT: 2700K-6500K / Tunable White / RGB 3in1 / RGBW 4in1

Control: Remote / On-Off

Input Voltage:DC24V/DC36V/DC48V/AC110-240V

Dimming: DALI / 0-10V  / Triac / PWM / DMX512

Beam Angle: 15°/24°/38°(Reflector Cup),15°/24°/36°/60°(Lens)

Material: Die-casting powder coated aluminum

Waterproof: IP66

Certification: CE EMC LVD, ROHS, IP66 etc.

Warranty: 3-5 Years

Download
Material Specifications
Model No.:PowerLight SourceLED ColorBeam AngleInput Volt.Control
LB-PA860108

8W/10W

/12W/15W

1PCS

CREE

/BRIDGELUX

/CITILED

 COB



2700-6500K

15°/24°/38°

(Reflector Cup)


AC220-240V

/AC110-130V

/AC110-240V

ON/OFF

/Triac/0-10V/DALI

LB-PA860108A 8-15W

2700-6500K

/Tunable WhiteK

DC24V/DC36V

/DC48V

ON/OFF

/Triac/0-10V/PWM

/DALI/DMX512

LB-PA860112

8W/10W

/12W/15W

2700-6500K

15°/24°/36°/60°

(Lens)

AC220-240V

/AC110-130V

/AC110-240V

ON/OFF

/Triac/0-10V/DALI

LB-PA860108B

8-15W

2700-6500K

/Tunable White

DC24V/DC36V

/DC48V

ON/OFF

/Triac/0-10V/PWM

/DALI/DMX512

LB-PA860115 8-15WRGB 3in1

PWM/DMX512

LB-PA8601248-24WRGBW 4in1PWM/DMX512



LED:CREE/BRIDGELUX/CITILED

Housing: 12#Die-casting powder coated aluminum. T=60-80um.Adhesion of ISO class 1/ASTM class48.

LED Driver:Constant voltage input.Constant current output.

Gasket:Tooling shaped double silicone seal.

Dimmable: Triac/Dali/1-10V/PWM/DMX512.

Working Temperature:-20 to 40°C.


Parameter Data

IP65 Outdoor 8W 12W Suspend Surface Mounted Wall Light  LED Dimmable adjustable pendant hanging lighting
