BELITE 2*12W IP66 led path light landscape spot light DC/AC led

Power:8~24W

LED:CREE/OSRAM/LUMINUS SMD

CRI:  80 / 90

SDCM: 3 / 5

CCT: 2700K / 3000K / 4000K / 6000K/RGB 3in1/RGBW 4in1

Control: Remote / On-Off

Input Voltage:DC24V/AC230V

Dimming: DALI / DMX512 / 0-10V / 1-10V / Triac

Beam Angle: 8°/12°/20°/30° /45° /60°/15*30°/20*60°

Material: Die-casting powder coated aluminum

Installation: Base mounting/Spike/Pole/Tree ring

Waterproof: IP66

Certification: CE EMC LVD, ROHS, IP66 etc.

Warranty: 3-5 Years

Download
Material Specifications
Model No.:PowerLED QTYLED ColorLumensBeam AngleInput Volt.
BL-GD86082020W2*4PCS2700-6000K1200lm-1300lm

8°/12°/20°/30° /45°

/60°/15*30°/20*60°

AC220-240V

/AC110-130V

BL-GD86081616W960lm-1000lmAC110-130V
BL-GD86083020W-48W1200lm-4000lm

DC24V

BL-GD86084820W-48W

RGBW 4in1

 DMX512

/

25°/40°/60°/10*22°

/12*45°/15*55°


Housing: 12#Die-casting powder coated aluminum. T=60-80um.Adhesion of ISO class 1/ASTM class48.

LED Driver:Constant voltage input.Constant current output.

Gasket:Tooling shaped double silicone seal.

Dimmable: Triac/Dali/1-10V/PWM/DMX512.

Power Cable:H05RN-F 2×1.0mm2 L=0.5m(low voltage).H05RN-F 3×1.0mm²  L=0.5m(high voltage)

                     H05RN-F 2×1.0+3×0.5mm²  L=0.5m(RGBW 4in1 DMX512)

Working Temperature:-20 to 40°C.

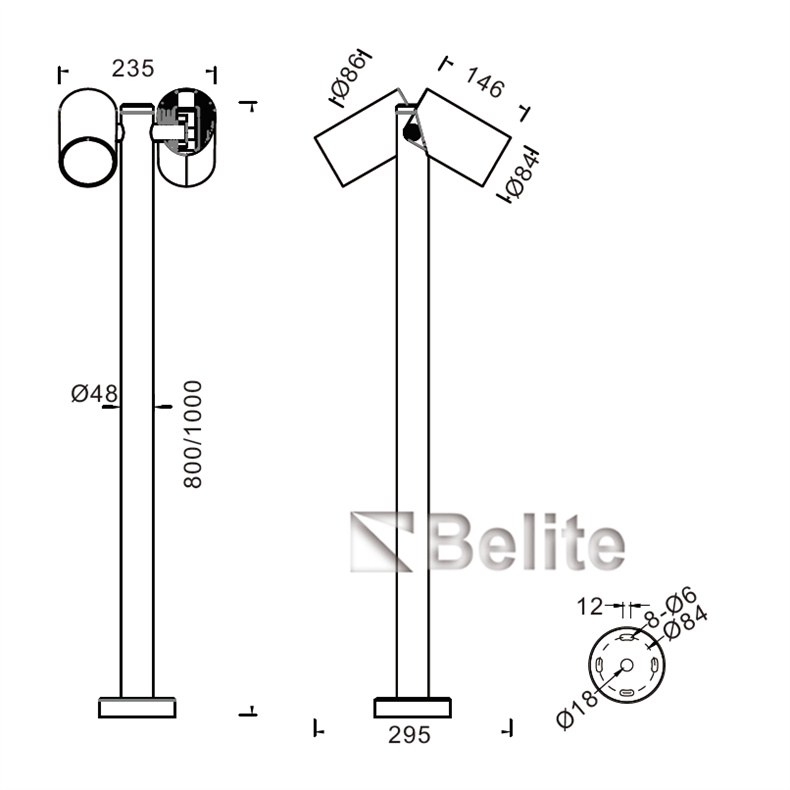

Parameter Data

BELITE 2*12W IP66 led path light landscape spot light DC/AC led
