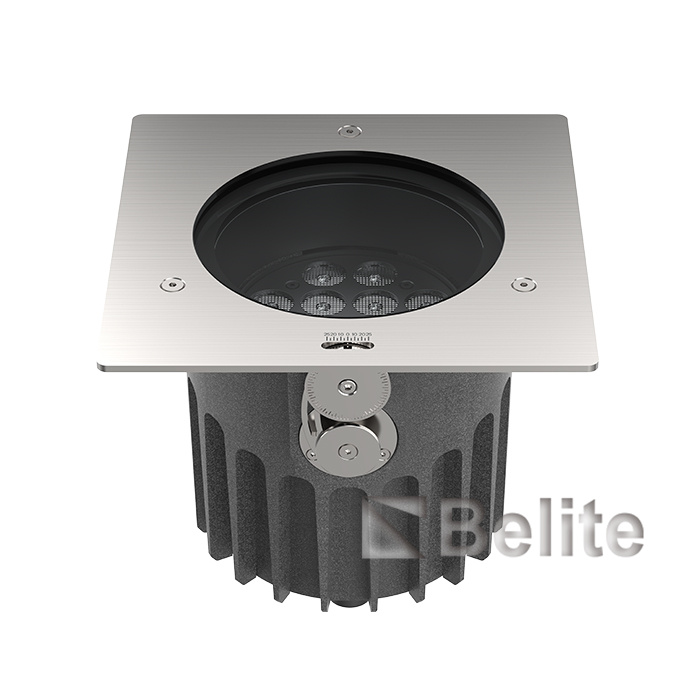

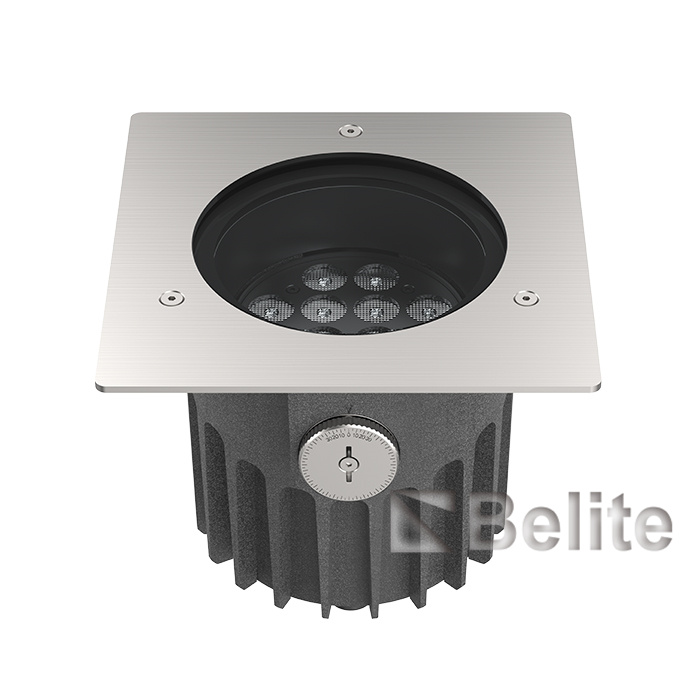

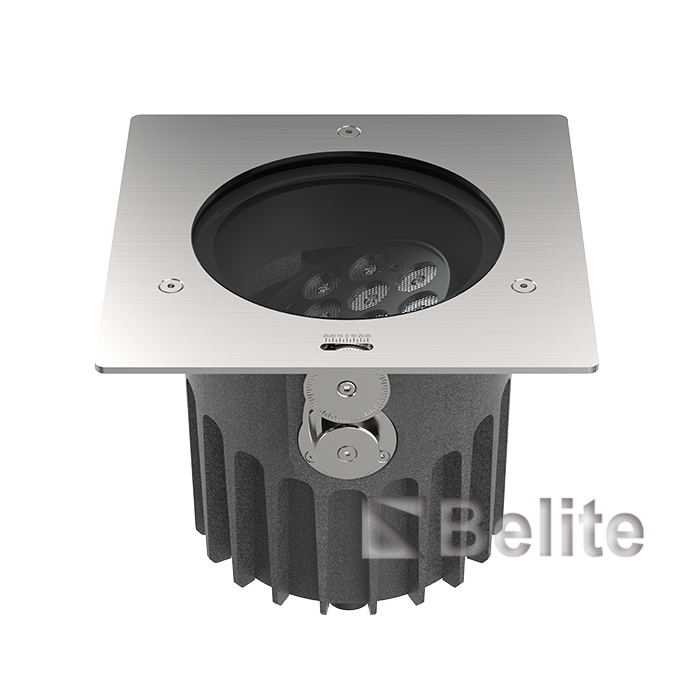

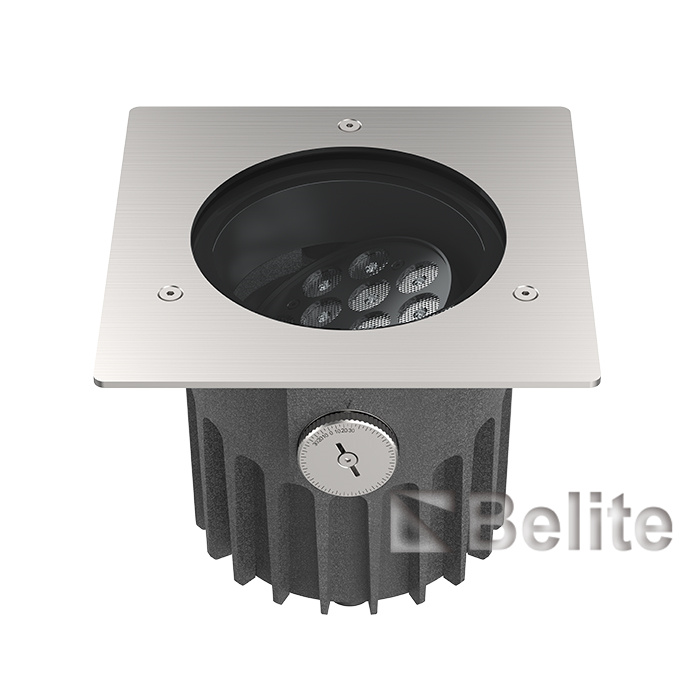

BELITE IP67 36W Beam Direction Adjustable Inground light

LED:CREE D208 SMD LED

Material:12# Die-casting grey powder coated Aluminium housing+8mm Tempering glass+SUS316 Stainless Steel front cover

LED Power:36-42W

Lens angle:  8°/ 12°/ 17°/ 20°/25°/ 30°/40°/60°/10°*22°/15°*55°/15°*30°/20°*60°

Input Voltage: 24VDC ;120/240V AC

CCT:2700K-6500K  R/G/B/W

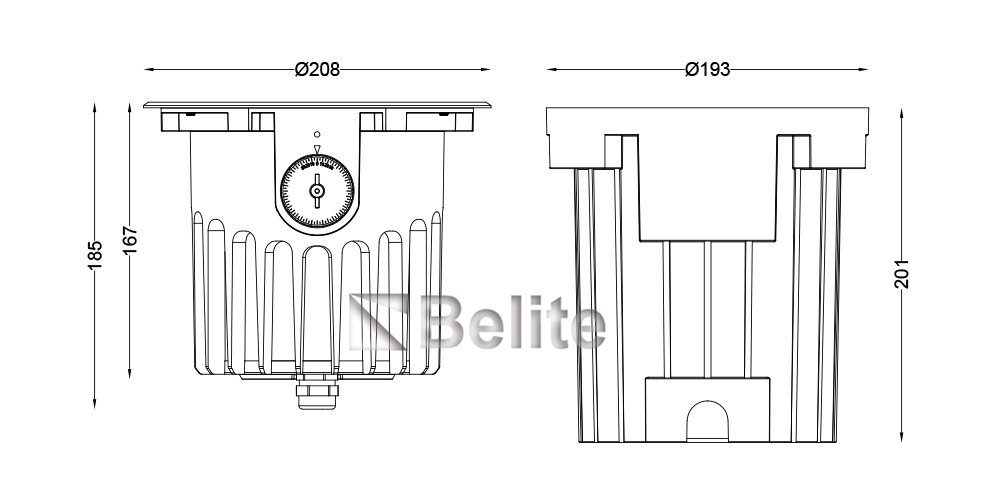

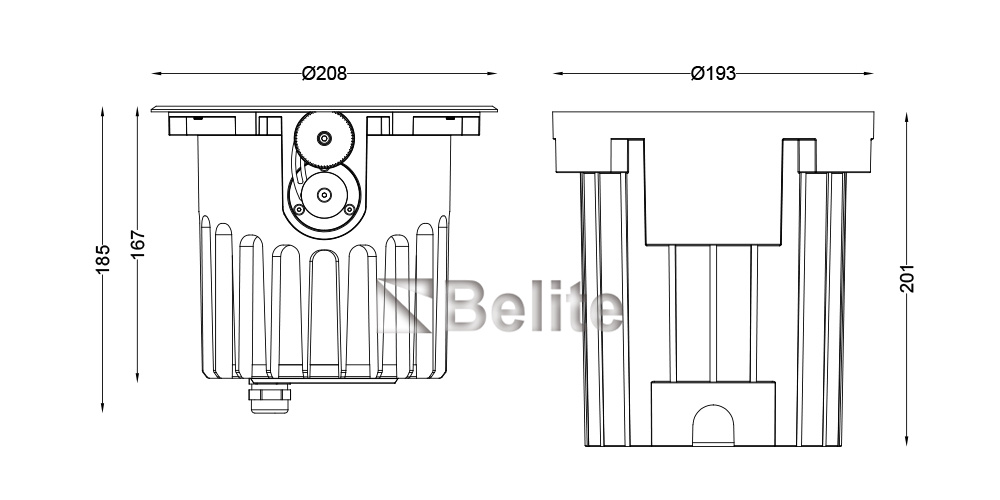

Size:208*185MM

Cut out:193MM

IP rate:IP67

Download
Material Specifications

Housing: 12#Die-casting powder coated aluminum.T=60-80um. Adhesion of ISO class 1/ASTM class 48 high temperature painting

Front Cover: SUS316# stainless steel---Hard Chromeplated

Glass: Tempered glass.T=10mm

Lens: Optical lens, efficiency≥90%

LED Driver: Constant voltage input, Constant current output

Cable Gland: IP68 copper and nickel coated

Gasket: Tooling shaped seal

Mounting Sleeve: ABS

Working Temperature: -20 to 40℃

Power Cable: H05RN-F 2X1.0mm² L=0.5m(low voltage)

                        H05RN-F 3X0.75mm² L=0.5m(high voltage) MEANWELL DRIVER

                        H05RN-F 4X0.75mm² L=0.5m(RGB)

Dimmable : DALI  Traic   PWM  1-10V DMX512


Parameter Data

BELITE IP67 36W Beam Direction Adjustable Inground light

BELITE IP67 36W Beam Direction Adjustable Inground light


Installation Instruction
